Gears

With our advanced manufacturing capabilities of CNC shaping, hobbing, profile grinding, and generative grinding, ODG proudly offers custom gear product solutions.

  • Gear Size: 6mm to 500mm [0.25 to 20 inches] in diameter.
  • Tooth Size: 1.6 to 8 module [40 to 3.2 diametral pitch].
  • Quality Level: AGMA A3 per 2015-a-A01 [DIN 3].

Suitable for any application needs from industrial to aerospace or medical, gear configurations include:

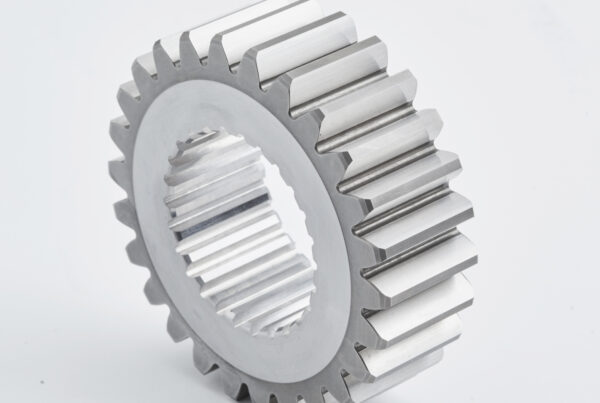

  • Spur and helical gears
  • External and internal gears
  • Single gears
  • Compound gears
  • Ring gears

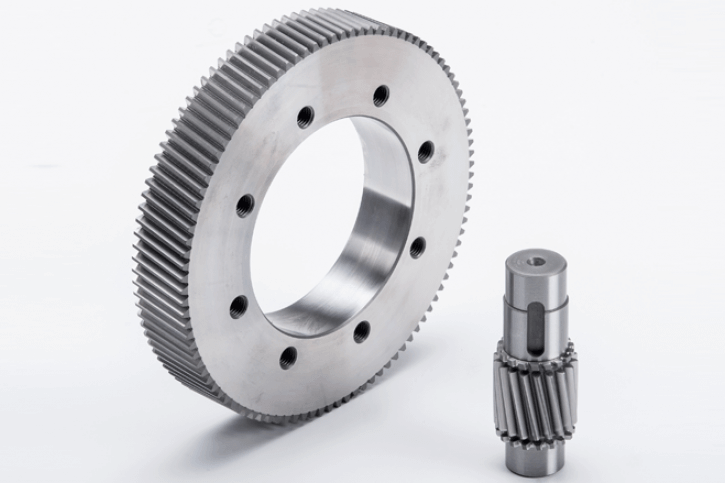

PUMP DRIVE GEARS

2.0MOD, 20°PA

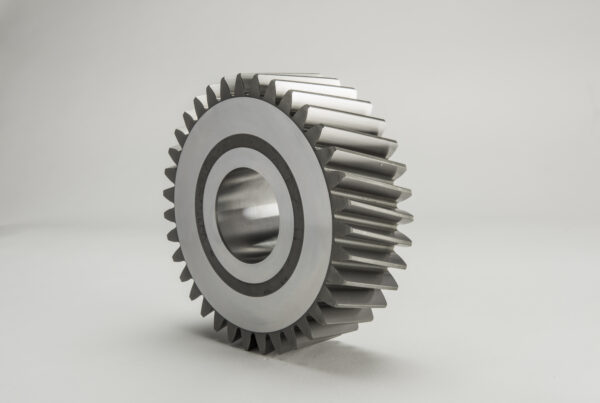

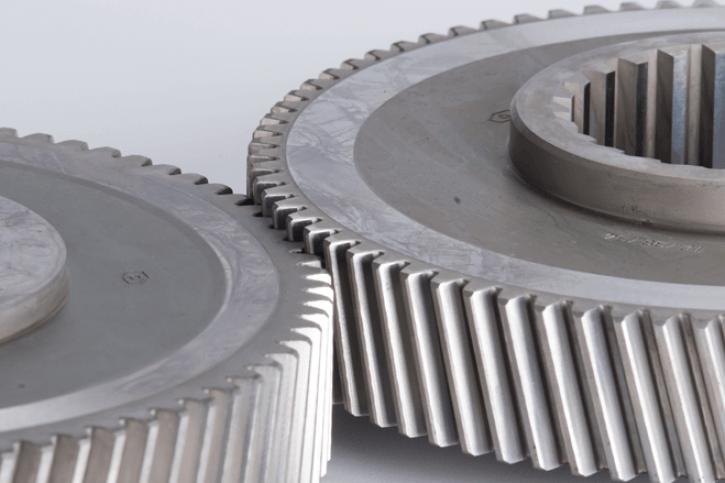

HELICAL DRIVE GEAR

4.0MOD, 20°PA

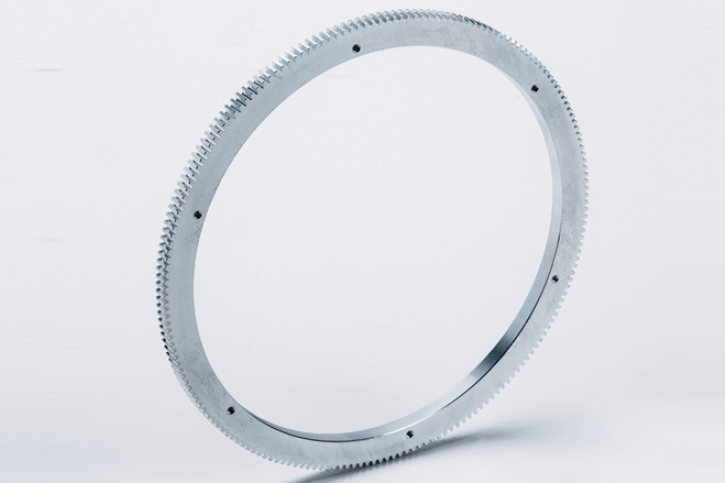

EXTERNAL RING GEAR

16DP, 14.5°PA

TIMING GEAR SET

8DP, 20°PA

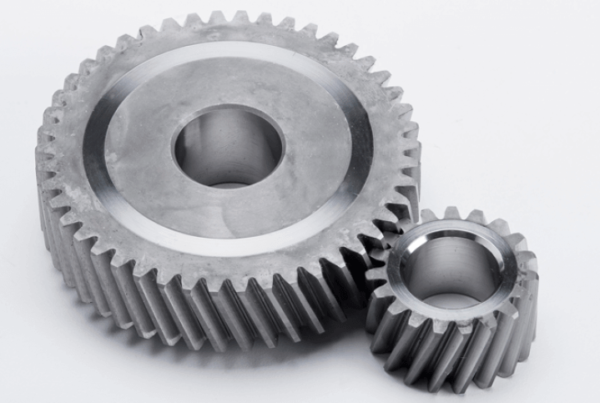

COMPRESSOR GEAR SET

16DP, 20°PA

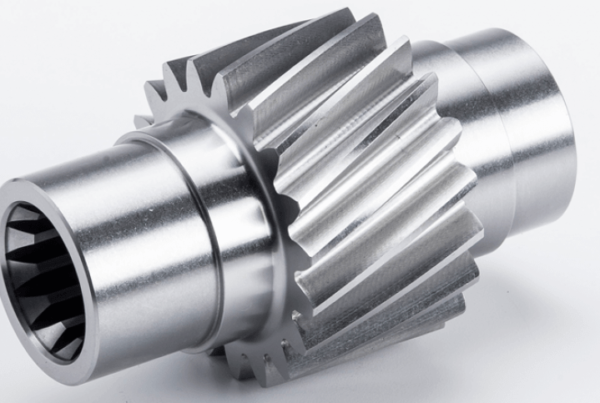

HELICAL PINION

16DP, 20°PA

CROSS SHAFT GEAR

3.50MOD, 20°PA

HYDRAULIC GEAR SET

4DP, 20°PA

HYDRAULIC PUMP GEAR SET

12DP, 20°PA

INTERNAL RING GEAR

3.0MOD, 20°PA

INTERNAL RING GEAR

3MOD, 20°PA

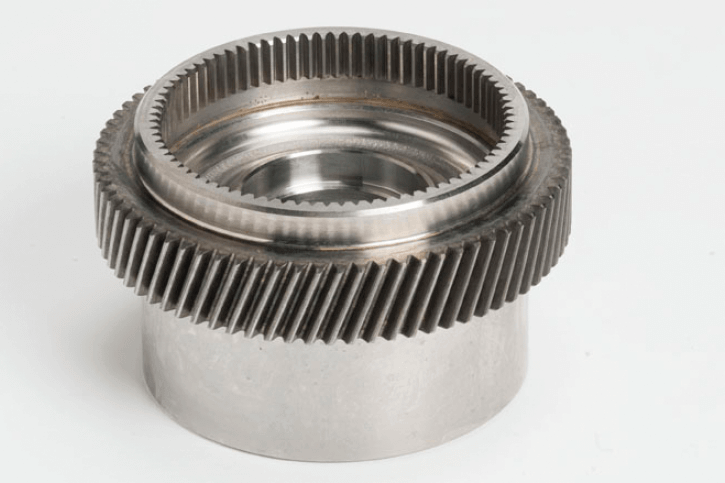

PLANETARY HUB DOUBLE RING GEAR

16DP, 25°PA
